Experimental facilities for research on synthesis of architected thin films
The PREMS platform includes 2 High temperature CVD reactors, 2 Atomic Layer Deposition reactor and 1 reactor dedicated to in-situ studies.
Permanent staff: Elisabeth BLANQUET, Raphaël BOICHOT, Alexandre CRISCI, Arnaud MANTOUX, Frédéric MERCIER, Magali MORAIS, Roman REBOUD, Michel PONS.

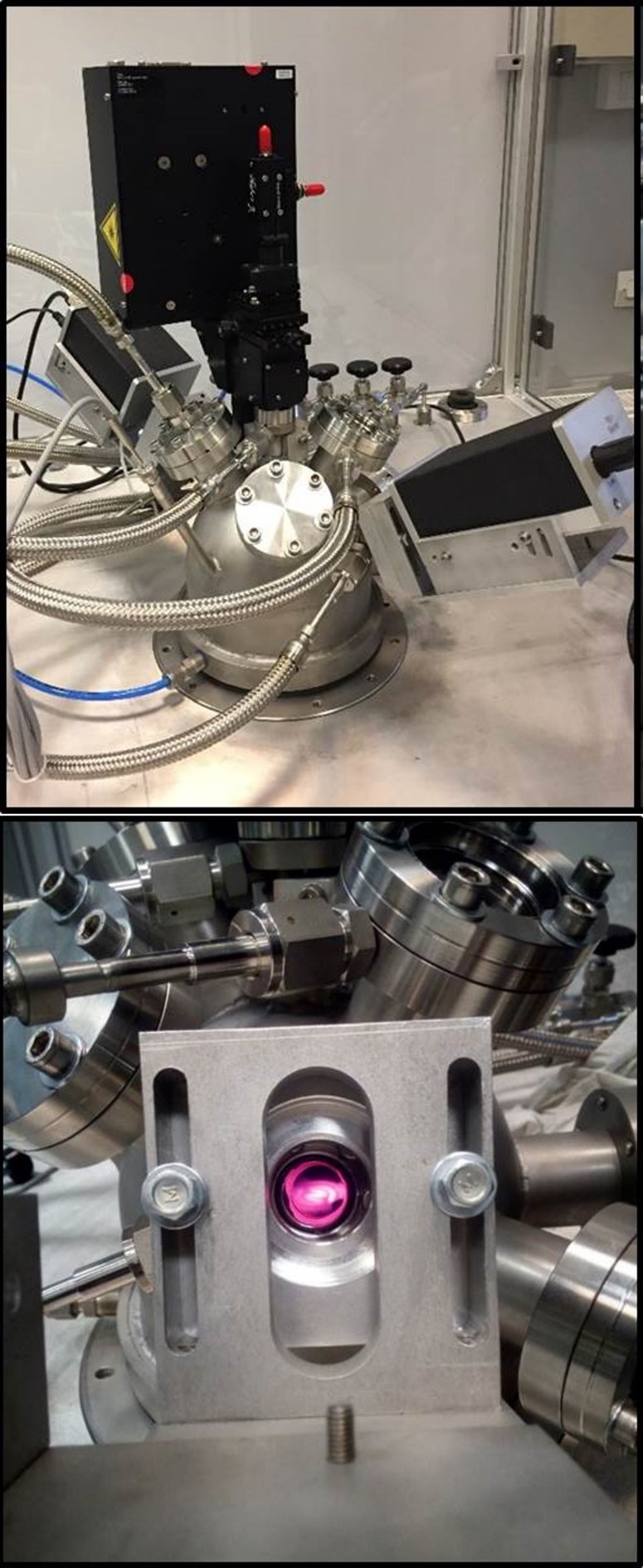

In-situ CVD/ALD Stuart reactor:
Homemade cold-wall reactor (stainless steel chamber) for optical study of growth and annealing (stress, growth rate, reflectance, Raman, ellipsometry). Working temperature up to 1100°C for a maximum size for samples of 15 mm. Gas lines: NH3,H2, Ar,N2, C3H8, Cl2, SiH4. 2 lines for solid or liquid precursors. In-situ chlorination of metals for deposition of corresponding nitride or carbide.
Example of materials synthesized/annealed : Al2O3,AlN, SiC, VO2,Y2O3:Eu
A few images of its manufacture ...
Example of materials synthesized/annealed : Al2O3,AlN, SiC, VO2,Y2O3:Eu
A few images of its manufacture ...
In-situ CVD/ALD Stuart Reactor

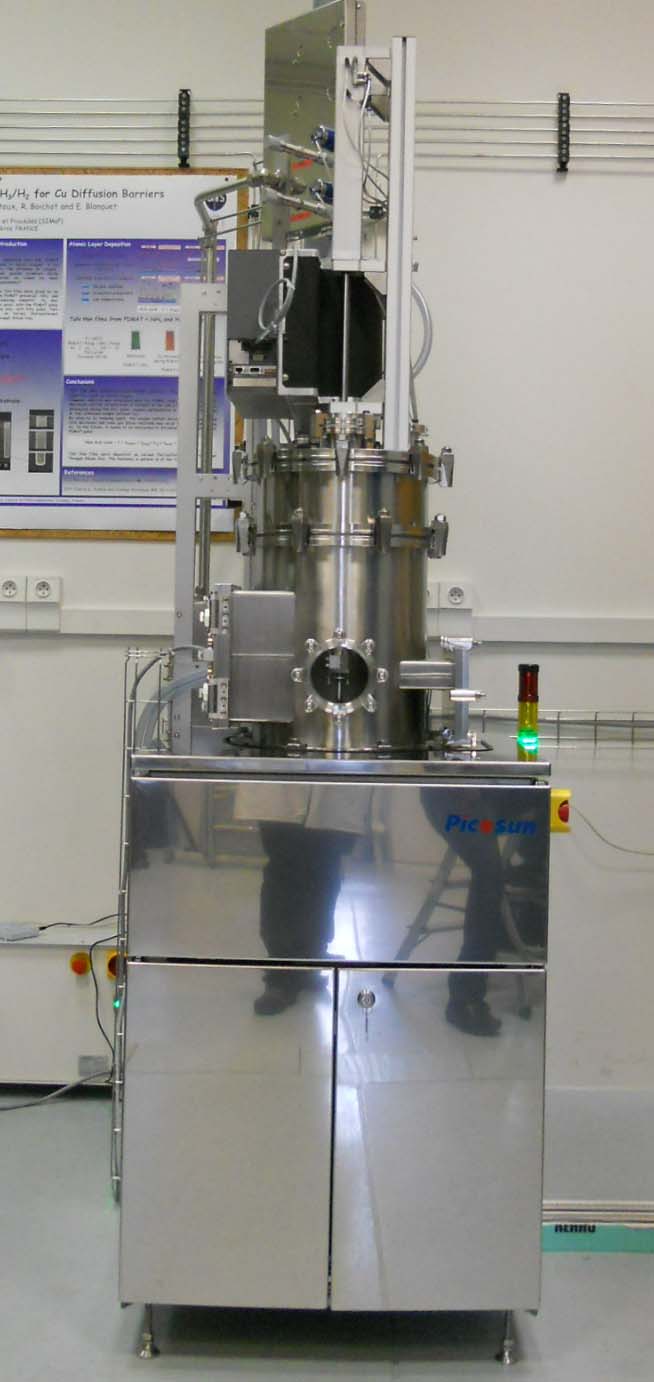

ALD Pico 1.0 reactor :
PEALD reactor form Picosun (R-200). Hot-wall reactor for synthesis of nanometric layers (in the range 1-200 nm) of metals, oxides and nitrides. Working temperature up to 500°C for a maximum size for samples of 20x20x15cm. Both thermal (N2O,NH3,O2,H2,Ar) and plasma (O2,H2)modes . 3 lines for solid or liquid precursors. Possibility to use ex-situ plasma cleaner.
Example of materials synthesized : TiN,AlN,NbN,TiO2,Al2O3
Example of materials synthesized : TiN,AlN,NbN,TiO2,Al2O3
ALD Pico 1.0 Reactor
ALD Nano 2.0 reactor
Homemade cold-wall reactor for synthesis of nanometric layers (in the range 1-200 nm) of oxides and nitrides. Working temperature up to 700°C for a maximum size for samples of 2 inches. Thermal mode (N2O,NH3,H2,Ar). 3 lines for solid or liquid precursors. Possibility to use ex-situ plasma cleaner.
Example of materials synthesized : TiN,AlN,NbN,TiO2,Al2O3
Example of materials synthesized : TiN,AlN,NbN,TiO2,Al2O3
ALD Nano 2.0 Reactor

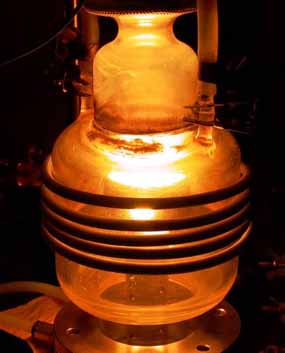

CVD Belledonne reactor :
Homemade cold-wall reactor (quartz tube) for synthesis of thin to thick layers (20nm-20 µm) of nitrides and silicides, from polycrystalline to single crystalline layers. Working temperature up to 1700°C for a maximum size for samples of 2 inches. Gas lines: NH3, H2, Ar, Cl2, SiH4, N2. 1 line for solid or liquid precursors. In-situ chlorination of metals (up to 2) for deposition of corresponding nitride or carbide.
Example of materials synthesized : TiN, AlN, TiAlN, NbN, NbTiN, Si, CrSi2
Example of materials synthesized : TiN, AlN, TiAlN, NbN, NbTiN, Si, CrSi2
CVD Belledonne Reactor

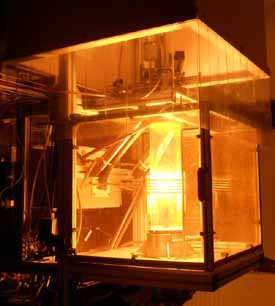

CVD Chartreuse reactor:
Homemade cold-wall reactor (quartz tube) for synthesis of thin to thick layers (20nm-20 µm) of nitrides, carbides and silicides, from polycrystalline to single crystalline layers. Working temperature up to 1700°C for a maximum size for samples of 4 inches. Gas lines: NH3, H2, Ar, Cl2, SiH4, N2, C3H8. 1 line for solid or liquid precursors. In-situ chlorination of metals for deposition of corresponding nitride or carbide.
Example of materials synthesized : TiN, AlN, TiAlN, NbN, NbTiN, Si, CrSi2
Example of materials synthesized : TiN, AlN, TiAlN, NbN, NbTiN, Si, CrSi2
CVD Chartreuse Reactor
