One of the paradigm to fill the holes in materials maps is to develop « architectured materials ». This has been adresses since late 90s by O. Sigmund and coworkers [1] with the so-called SIMP method. In a collaboration with G. Allaire and co-workers from CMAP (Ecole Polytechnique), the topology description with level sets functions as this can account naturally for interface effects and multi-materials, first initiated during N. Vermaak post-doc (now at Lehigh university) [2], and further and deeper developed during A. Faure PhD [3] supported by the labeX CEMAM, in which G. Michailidis (now at ANSYS) and C. Dapogny (LJK, UGA) were involved. Heterogeneous materials with extreme thermo-elastic properties were designed [4] and later the questions of processing with account for fabrication constraints considered [5].

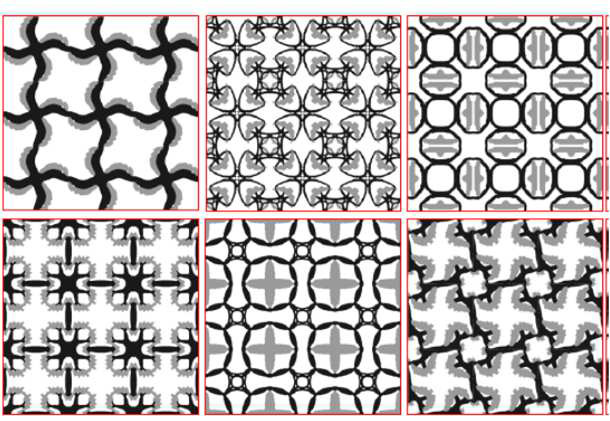

Design of thermo-elastic heterogeneous microstructures, with various local mechanisms (from [4]):

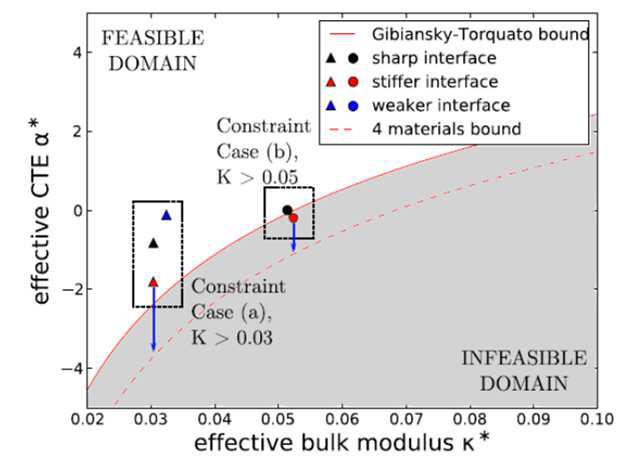

On the left, theoretical thermo-elastic bounds derived by [Gibianski & Torquato, 1997, JMPS], predictions with a sharp interface from [Sigmund 2000, JMPS] and comparison with graded interfaces [4]. On the right, various design not best performant but providing insight on the operating mechanisms.
In the (near) future, we will focus in accounting for « usage properties » (fatigue, plasticity, failure, non linear effects) in the final design. This will be perform within a topology optimization platform developed by A. Faure during his PhD.
Design of thermo-elastic heterogeneous microstructures, with various local mechanisms (from [4]):
On the left, theoretical thermo-elastic bounds derived by [Gibianski & Torquato, 1997, JMPS], predictions with a sharp interface from [Sigmund 2000, JMPS] and comparison with graded interfaces [4]. On the right, various design not best performant but providing insight on the operating mechanisms.
