NANOINDENTATION SIMULATION
Simulation of the nanoindentation test of a (001) single crystal of Cu is performed using 3D4 modelling.

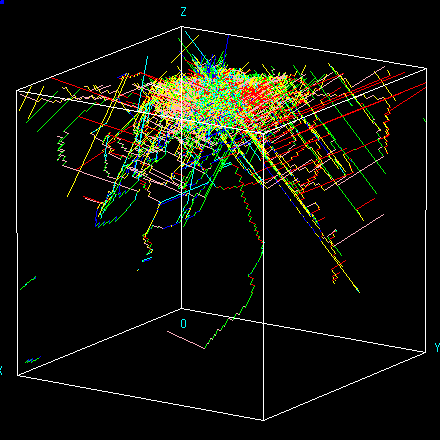

A nucleation criterion for the indent induced dislocations has been established from experiments. The dislocation microstructure at a depth of 50nm is shown in the animated sequence.
Hardness is estimated from the dislocation density.
Both the indent-induced plastic size and the Hardness estimation fit well the experiments performed under the same conditions.
![](https://simap.grenoble-inp.fr/medias/photo/nano3d_1237823806487.gif?ID_FICHE=147341)
Simulation of the nanoindentation test of a (001) single crystal of Cu is performed using 3D4 modelling.

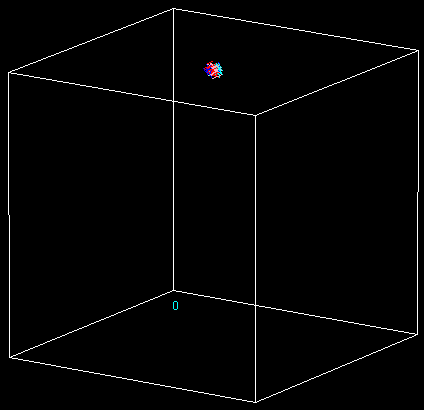

A nucleation criterion for the indent induced dislocations has been established from experiments. The dislocation microstructure at a depth of 50nm is shown in the animated sequence.
Hardness is estimated from the dislocation density.
Both the indent-induced plastic size and the Hardness estimation fit well the experiments performed under the same conditions.
![](https://simap.grenoble-inp.fr/medias/photo/nanoind_1237823786805.gif?ID_FICHE=147341)
![](https://simap.grenoble-inp.fr/medias/photo/nano3d_1237823806487.gif?ID_FICHE=147341)
![](https://simap.grenoble-inp.fr/medias/photo/3d4_1237393123837.gif?ID_FICHE=147341)
